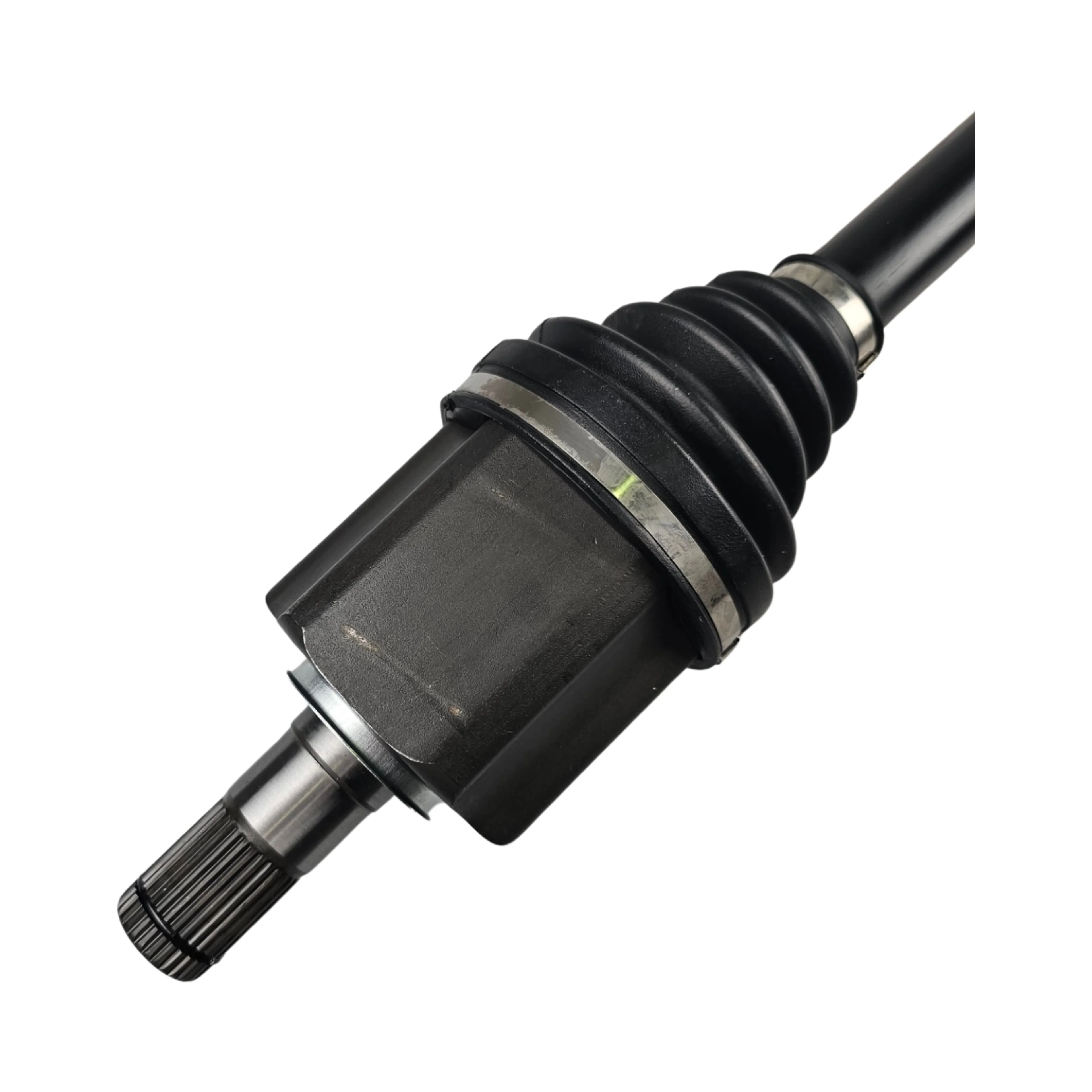

CV Axle Drive Shaft - Front Left Hand Side  CVT Automatic FWD 4WD AWD

***For automatic or CVT only, left side***

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

Vehicle Fitment

• Nissan X-Trail T31 TCNT31 2.0L M9R 4WD AT (07/2008 - 02/2014)
  Includes Sub-models TL, TS
• Renault Koleos H45 2.5L 2TR.700 / 2.0L M9R AWD FWD AT CVT (09/2008 - 08/2016)
  Includes Sub-models BOSE SE, Dynamique, Expression, Sport Way Limited Edition
• Renault Koleos HZG 2.0L M9R AWD CVT (08/2017 - Onwards)
  Includes Sub-models Intens, Intens X-Tronic



Sizing and Specifications

• Length (Compressed): 650mm
• Spline Count - Outer/Wheel Side: 29T
• Spline Count - Inner/Diff Side: 30T
• Inboard Joint Type: Tripod
• Outboard Joint Type: Ball
• Drive Shaft Seal - Inner ID: 34mm
• Hub Nut Size: M24 x 1.5



What's Included

• 1 x CV Shaft

 Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
